GEOSUB IAS Double structured wall pipe with color identity
- CLASS:L450
GEOSUB L450 pliable conduit belongs to the same product family as GEONFLEX N750 pliable conduit and is one of the most important investments of KOUVIDIS in the field of cable management and protection in buried underground networks. It was launched in 2014 in order to be used in buried underground networks with lower mechanical requirements. In 2017, the company launched the 2nd generation of GEOSUB L450 with color marking, which specifies the color coding according to the application field (electrical installations or communication systems), upgrading both product itself and electrician’s work.
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for protection and management of buried underground power and telecommunication networks (motorways, road networks, tunnels etc.), urban development projects (pedestrianization, shaping of public spaces, rehabilitation of historic centers, etc.), RES urban development projects (photovoltaic and wind parks), construction projects such as industrial buildings, shopping centers, housing, etc.
- APPLICATION STANDARD:EN 61386-24, NF P98-332/EN 12613 & ΕΝ 50520 (Reference Standards)
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS)

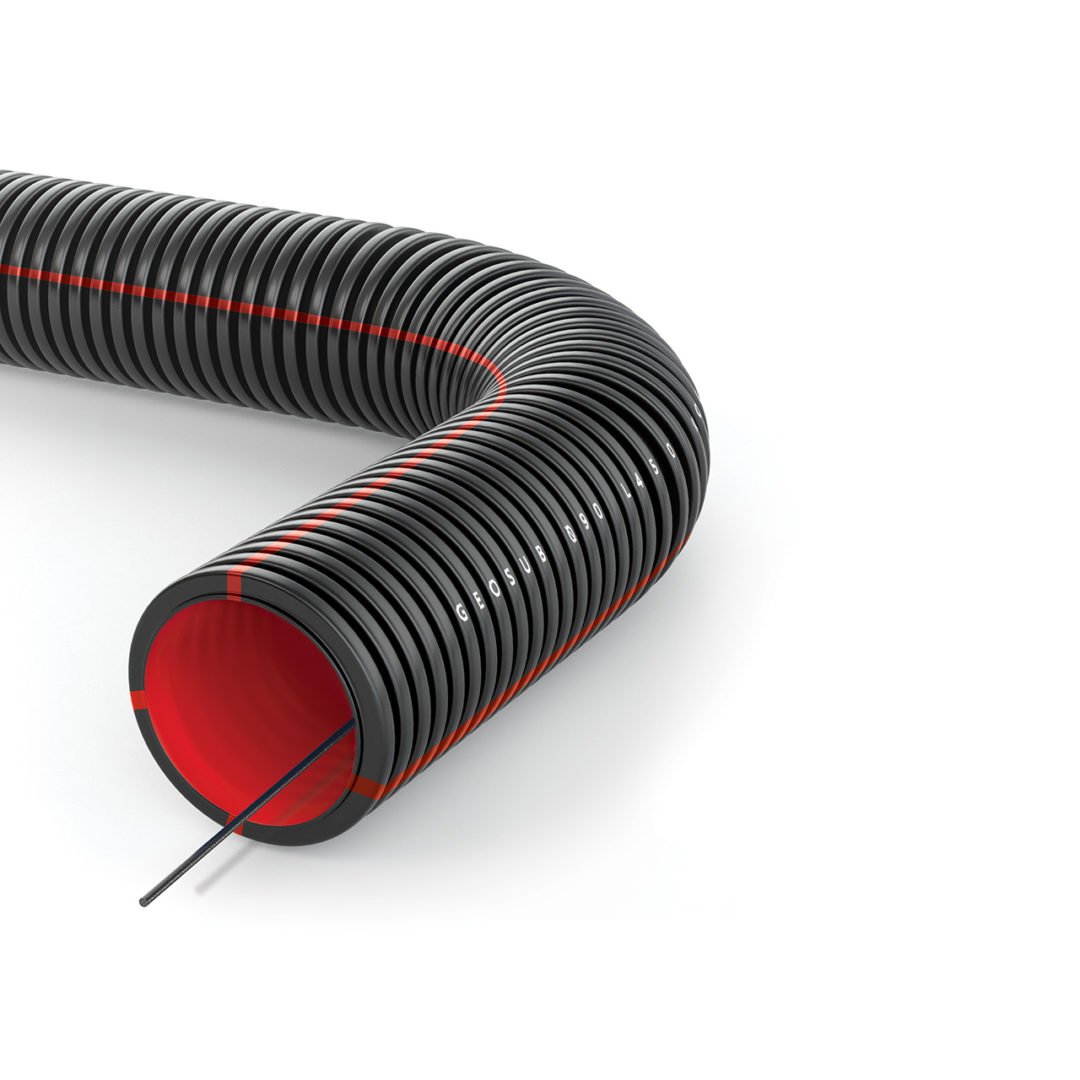

- COLOR:RAL 3020 red (inner layer, longitudinal lines), RAL 9004 black (outer layer)
Product Conformity to all requirements of relative European Directives.- The product and its production process are inspected and approved by VDE German institute
- Min-max permanent application temperature
- Ingress protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Product that propagates flame
- Product is made of halogen free raw materials – absence of fluorine, iodine, bromine, chlorine, etc (ΕΝ 50642)
- Antistatic Technology
- PROPERTIES
- CHARACTERISTICS

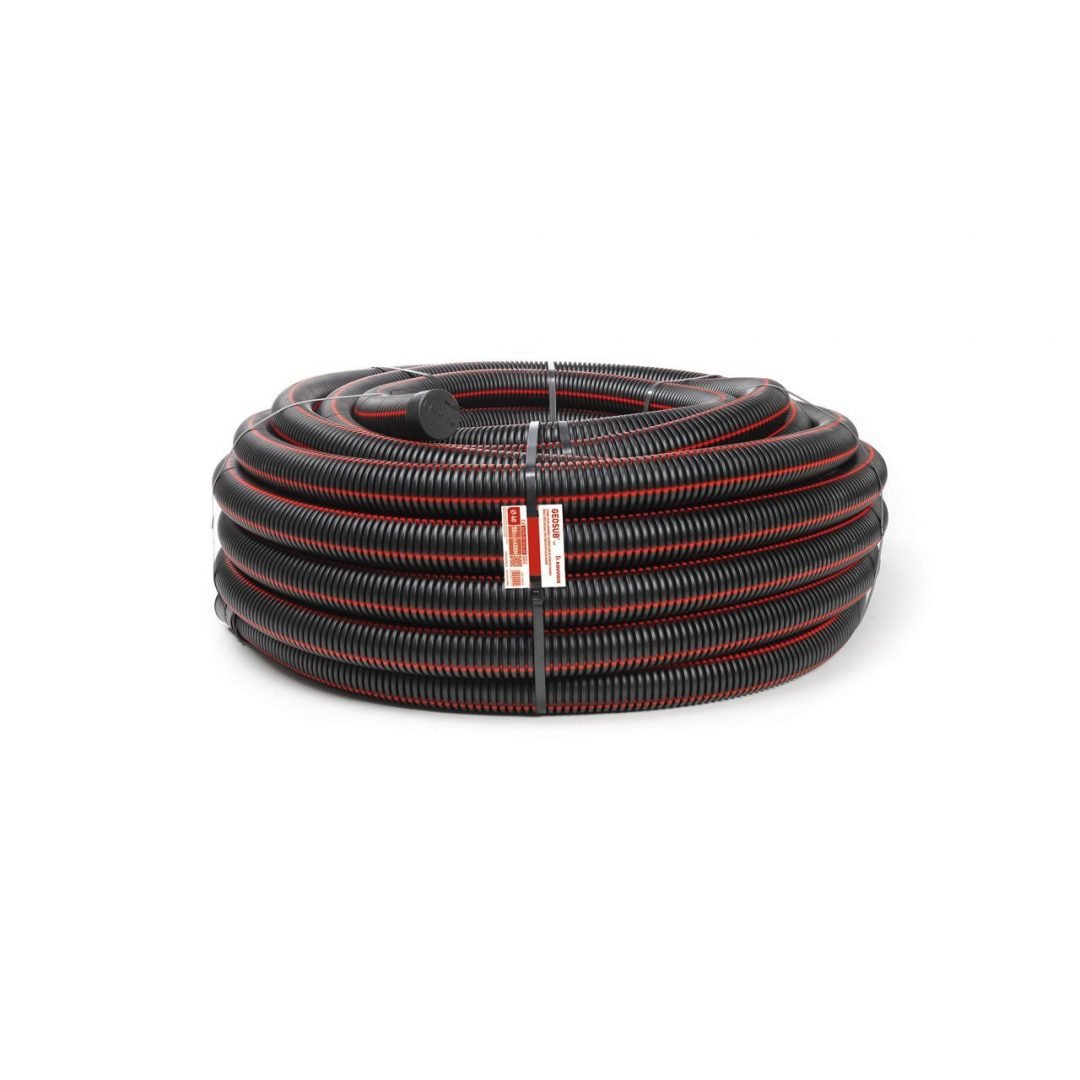

- PACKAGING
- RECOMMENDED APPLICATIONS
- DOWNLOADS
- PROJECTS
1Cable guide with minimum tensile strength 650Nt
2Ensures Ingress Protection IP40 when connecting with KOUVIDIS connection couplers with hooks and IP68 when using KOUVIDIS adhesive and sealant
3It has been tested and certified by VDE German Institute
4Printed with their basic properties, packed with special BLACK safety straps and affixed with an informative waterproof indelible mauve label
5UV stabilized > 5 years
6Not attractive to rodents (European Patent EP2698792)

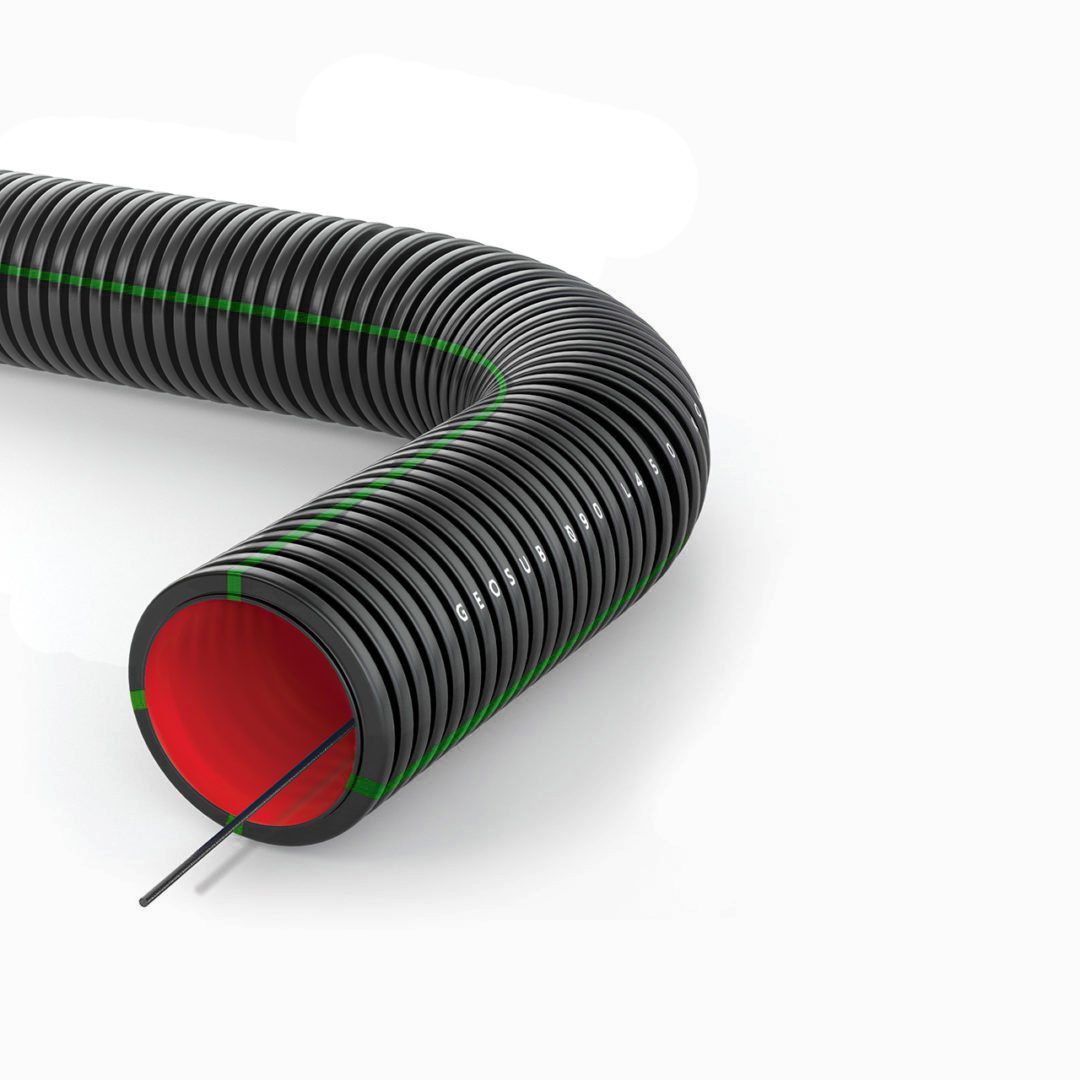

7Longitudinal thin stripes of indelible color indicate the power of the protected cables
8Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
| Properties | |
| Resistance to compression | 450 Nt (Type 450) |
| Resistance to impact | Light |
| Lower temperature range | -5oC |
| Upper temperature range | +90oC |
| Resistance to bending | Pliable |
| Electrical characteristics | With electrical insulated characteristics |
| IP ingress protection | IP40 (coupler connected) IP 68 (coupler bonded with KOUVIDIS sealant) |
| Resistance to flame propagating | Flame propagating |
| Additional properties | |
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic HDPE |
| Ageing resistance | UV stabilized ( 5years) |
| Internal guide | Cable guide with minimum tensile strength 650Nt |
| Color marking | Longitudinal thin stripes of indelible color indicate the power of the protected cables |
| Antistatic technology | Protection against static electricity |
| Type |
Part number |
 |
 |
 |
 |
 |
| Ø32 | 2006032 | 32 | 24.0 | 50 | 4,20 | 40000 |
| Ø40 | 2006040 | 40 | 30.0 | 50 | 5,86 | 31500 |
| Ø50 | 2006050 | 50 | 37.0 | 50 | 6,99 | 21000 |
| Ø63 | 2006063 | 63 | 47.0 | 50 | 10,59 | 14000 |
| Ø75 | 2006075 | 75 | 61.5 | 50 | 14,21 | 10000 |
| Ø90 | 2006090 | 90 | 76.3 | 50 | 20,05 | 7000 |
| Ø110 | 2006110 | 110 | 92.7 | 50 | 26,09 | 4500 |
| Ø125 | 2006125 | 125 | 106.1 | 50 | 30,57 | 3500 |
| Ø160 | 2006160 | 160 | 138.4 | 25 | 25,19 | 1900 |
| Ø200 | 2006200 | 200 | 171.1 | 25 | 32,43 | 1225 |
LEGEND
- Recommended
- Not recommended
- Ideal according to the manufacturer
| SCOPES | |
| Exposed | |
| Concealed (dry wall) | |
| Concealed (underplaster) | |
| Concrete | |
| Underfloor in screed | |
| Outdoor | |
| Buried underground | |
| Application on wood | |
| Concealed (floor, ceilings) | |
