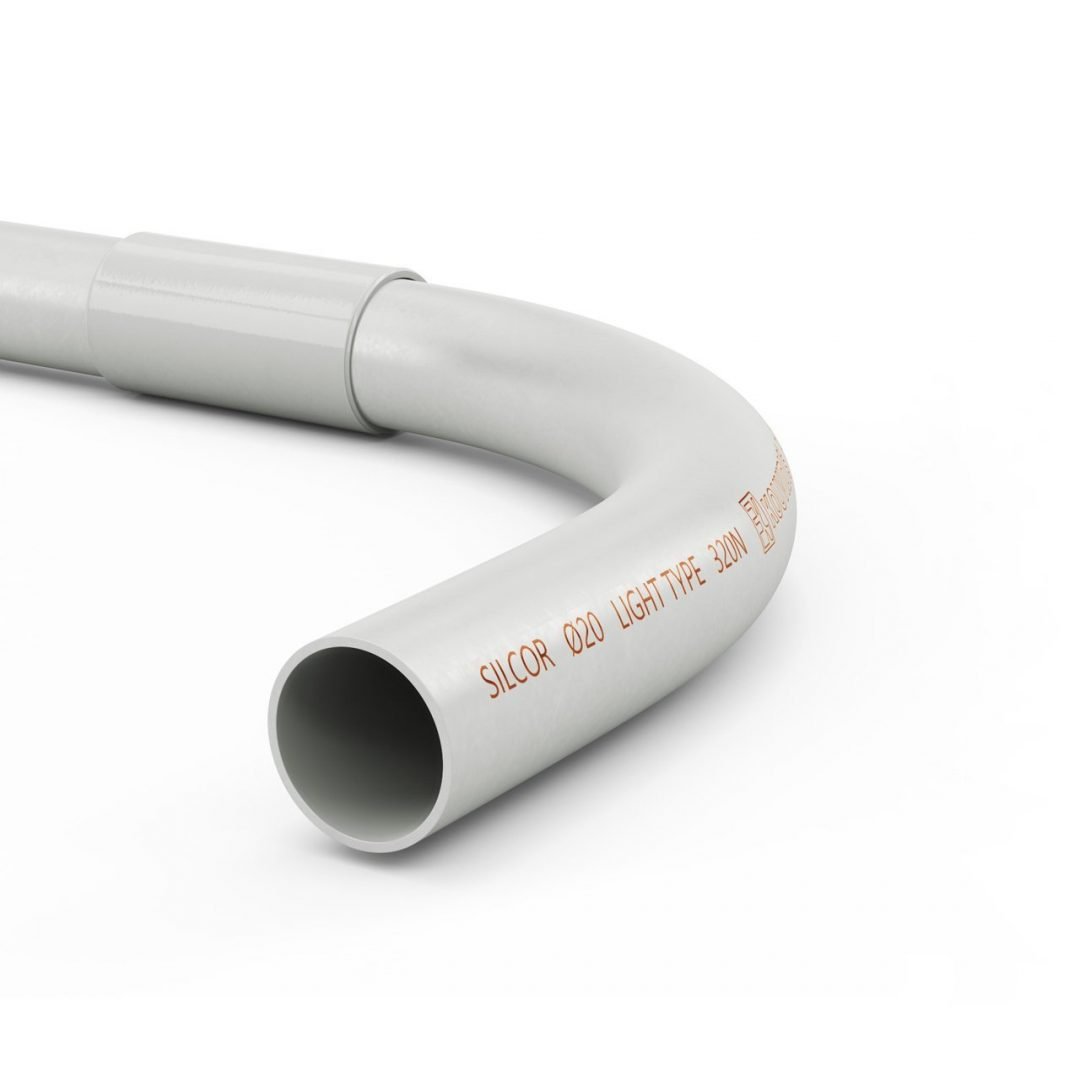

SILCOR IAS Bend for light type conduits
- CLASS:23411
SILCOR bend is a part of SILCOR – SIFLEX conduit system for cable management and protection. It has the same properties as SILCOR conduit and is produced by a fully automated production line.
APPLICATION FIELD
Ideal for indoor exposed installations with light mechanical requirements such as commercial buildings, residential buildings. Their high impact strength, at low temperature environments,make them also ideal for cold weather conditions.
- APPLICATION STANDARD:EN 61386.21
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EU(LVD), 2011/65/EU(RoHS)
- COLOR:RAL 7035 Light grey
Product Conformity to all requirements of relative European Directives.- The product and its production process are inspected and approved by VDE German institute
- Minimum compression strength
- Minimum impact strength
- Min-max permanent application temperature
- Ingress protection against solid objects and water (EN 60529)
- Non flame propagating product
- Antistatic Technology
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- DOWNLOADS
1High impact (2J) resistance, (medium type) in low temperature of -25oC
2High ingress protection (min IP65), when connected with CONDUR coupler
3It has been tested and certified by VDE German Institute
4Engraved with laser printing and packed in 100% recyclable packaging for their maximum protection
5Incorporates antistatic technology which protects against static electricity (Patent Protected: 1009810)
| Properties | |
| Resistance to impact | 2J (at -25oC) |
| Lower temperature range | -25oC |
| Upper temperature range | +60oC |
| Electrical characteristics | With electrical insulated characteristics |
| Protection against ingress of solid objects | min IP65 |
| Protection against ingress of water | min IP65 |
| Resistance to flame propagating | Non flame propagating |
| Additional properties | |
| Raw material | Heavy metals free (RoHS), specially stabilized thermoplastic U-PVC |
| Antistatic technology | Protection against static electricity |
| Type | Part number |  |
 |
 |
 |
 |
 |
| Ø16 | 4011016 | 16 | 13.8 | 27 | 59 | 40 | 680 |
| Ø20 | 4011020 | 20 | 17.7 | 35 | 74 | 40 | 640 |
| Ø25 | 4011025 | 25 | 22.5 | 36.7 | 108 | 20 | 280 |
| Ø32 | 4011032 | 32 | 29.4 | 47.6 | 142 | 9 | 90 |
