MEDISOL AMHF halogen free rigid conduit with antimicrobial technology

CLASS:34441

MEDISOL AMHF conduit with antimicrobial technology is a part of MEDISOL AMHF – MEDIFLEX AMHF conduit system for cable management and protection. Its antimicrobial technology is a Pan European Patent which has the property to reduce up to 99% of the most dangerous pathogenic microbes (MRSA, E-coli) within 24 hours. It is made from halogen free raw materials, based on Polycarbonate (PC), a virtually unbreakable material that ensures extraordinary mechanical resistance to compression and impact at extreme temperatures.*

*MEDISOL AMHF conduit is being tested by KOUVIDIS quality control lab for its impact resistance (6J) at -45^oC

LEARN MORE ABOUT THE INNOVATION

APPLICATION FIELD

Ideal for sanitary areas (hospitals, medical centers & laboratories) and public spaces (schools, nursery homes/rooms & sport centers) and areas requiring implementation of HACCP & ISO 22000 systems such as food industries/warehouses, restaurants, etc.

APPLICATION STANDARD:EN 61386.21, ISO 22196, EN 50642
INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS), 98/8/ΕΕ (BPD)
COLOR:RAL 9003 White

Product Conformity to all requirements of relative European Directives.
Minimum compression strength
Minimum impact strength
Min-max permanent application temperature
Ingress protection against solid objects and water (EN 60529)
Product with extra UV stability
Non flame propagating product
Product Certificate for its antimicrobial effectiveness from the BIOCOTE British Institute (ISO 22196)
Antimicrobial product that inhibits by up to 99.9% the growth of harmful bacteria.
Product is made of halogen free raw materials – absence of fluorine, iodine, bromine, chlorine, etc (ΕΝ 50642)
Product is not an attractive food to rodents

PROPERTIES
CHARACTERISTICS

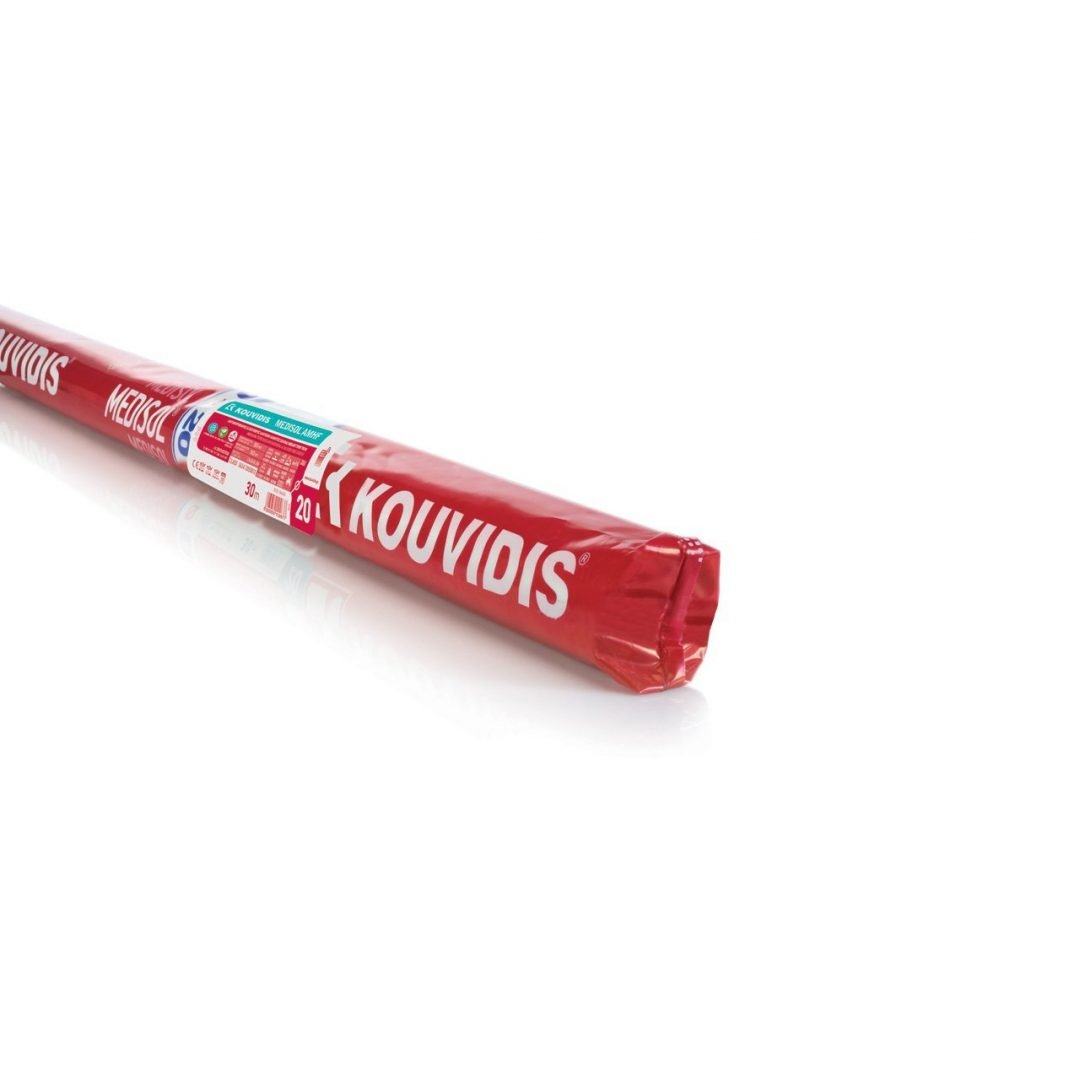

PACKAGING
RECOMMENDED APPLICATIONS
DOWNLOADS

1Resist the growth of bacteria by up to 99% within 24 hours

2Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE

3No toxic or corrosive gases in case of fire

4High impact (6J) resistance (heavy type) in extreme low temperature of (-45^oC)

5High ingress protection (min IP65), when connected with MEDISOL AM coupler

Properties		Κλάση
Resistance to compression	750Nt/5cm	3
Resistance to impact	6J (at -25^oC)	4
Lower temperature range	-25^oC	4
Upper temperature range	+120^oC	4
Resistance to bending	Rigid	1
Electrical characteristics	With electrical insulated characteristics	2
Protection against ingress of solid objects	min IP65	6
Protection against ingress of water	min IP65	5
Resistance against corrosion	Not applicable	0
Tensile strength	None declared	0
Resistance to flame propagating	Non flame propagating	1
Suspended load capacity	None declared	0

Additional properties
Raw material	Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PC
Ageing resistance	UV stabilized
Antimicrobial technology	Resist the growth of bacteria by up to 99% within 24 hours
Halogen free	No toxic or corrosive gases in case of fire
Rodent repellent	Not attractive to rodents

Type	Part number
Ø16	1044016	16	13.1	30	2,18	6000
Ø20	1044020	20	16.8	30	3,02	5460
Ø25	1044025	25	21.7	30	4,40	3300
Ø32	1044032	32	27.9	15	2,85	1755
Ø40	1044040	40	35.8	9	2,51	1071
Ø50	1044050	50	45.5	9	3,66	702
Ø63	1044063	63	57.8	9	5,40	396

LEGEND

Recommended
Not recommended
Ideal according to the manufacturer

SCOPES
Exposed
Concealed (dry wall)
Concealed (underplaster)
Concrete
Underfloor in screed
Outdoor
Buried underground
Application on wood
Concealed (floor, ceilings)
