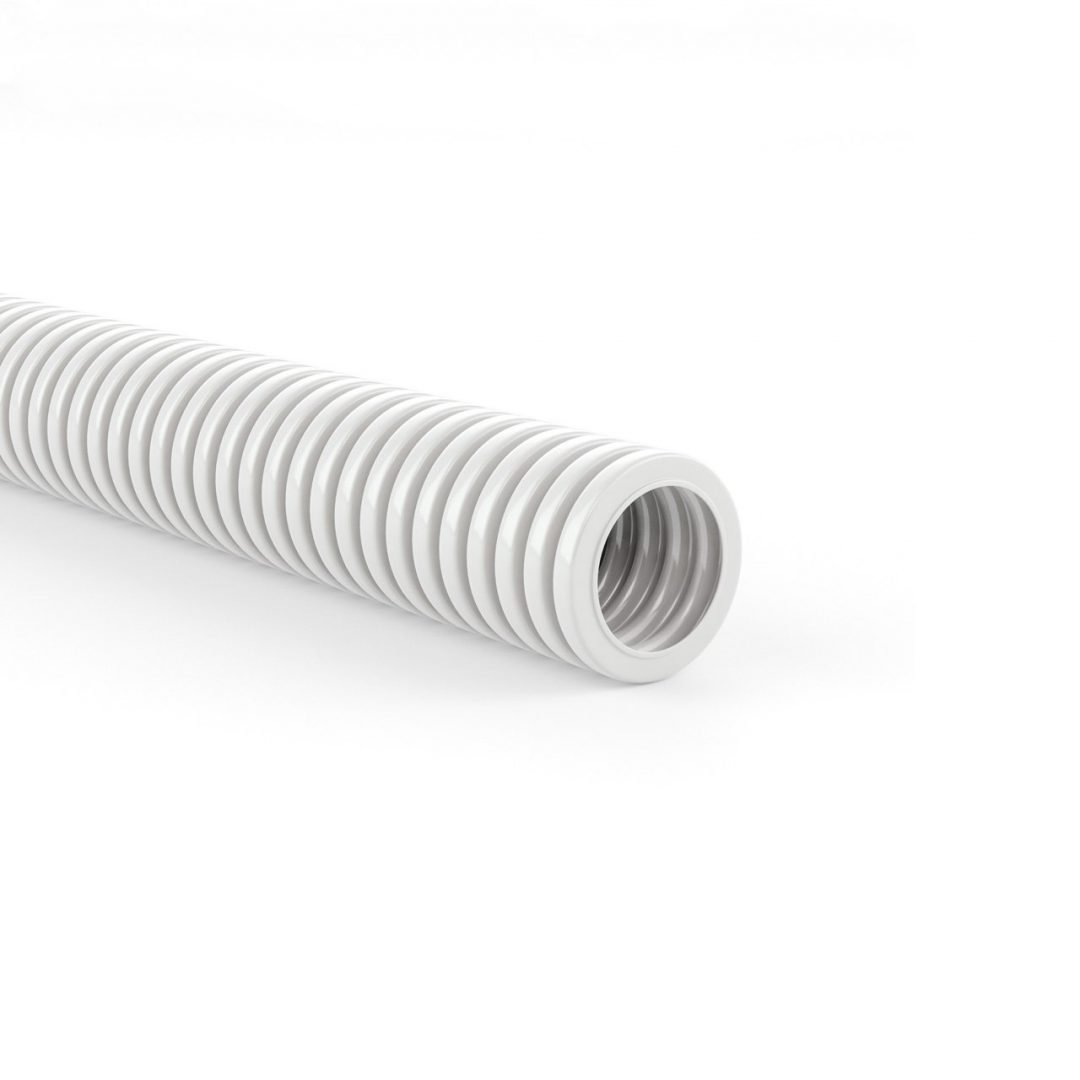

MEDIFLEX AMHF halogen free pliable conduit with antimicrobial technology
- CLASS:33442
MEDIFLEX AMHF conduit with antimicrobial technology is a part of MEDISOL AM HF– MEDIFLEX AM HF conduit system for cable management and protection. It incorporates a pan European patent which has the property to reduce up to 99% of the most dangerous pathogenic microbes (MRSA, E-coli) within 24 hours. It is made from halogen free raw materials based on Polycarbonate (PC), a virtually unbreakable material that ensures extraordinary mechanical resistance to compression and impact at extreme temperatures* . Its advanced properties make it ideal for projects of high mechanical requirements.
*MEDIFLEX AMHF conduit is being tested by KOUVIDIS quality control lab for its impact resistance (2J) at -45oC
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for sanitary areas (hospitals, medical centers & laboratories) and public spaces (schools, nursery homes/rooms & sport centers) and areas requiring implementation of HACCP & ISO 22000 systems such as food industries/warehouses, restaurants, etc.
- APPLICATION STANDARD:EN 61386.22, ISO 22196, EN 50642
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EE (RoHS), 98/8/ΕΕ (BPD)
- COLOR:RAL 9003 White
Product Conformity to all requirements of relative European Directives.- Minimum compression strength
- Minimum impact strength
- Min-max permanent application temperature
- Ingress protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Non flame propagating product
- Product Certificate for its antimicrobial effectiveness from the BIOCOTE British Institute (ISO 22196)
- Antimicrobial product that inhibits by up to 99.9% the growth of harmful bacteria.
- Product is made of halogen free raw materials – absence of fluorine, iodine, bromine, chlorine, etc (ΕΝ 50642)
- Product is not an attractive food to rodents
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- RECOMMENDED APPLICATIONS
- DOWNLOADS
1Resist the growth of bacteria by up to 99% within 24 hours
2Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE
3No toxic or corrosive gases in case of fire
4High impact (2J) resistance (medium type) in extreme low temperature of -45oC
5High ingress protection (min IP65), when connected with MEDISOL AM coupler
| Properties | Class | |
| Resistance to compression | 750Nt/5cm | 3 |
| Resistance to impact | 2J (at -25oC) | 3 |
| Lower temperature range | -25oC | 4 |
| Upper temperature range | +120oC | 4 |
| Resistance to bending | Pliable | 2 |
| Electrical characteristics | With electrical insulated characteristics | 2 |
| Protection against ingress of solid objects | min IP65 | 6 |
| Protection against ingress of water | min IP65 | 5 |
| Resistance against corrosion | Not applicable | 0 |
| Tensile strength | None declared | 0 |
| Resistance to flame propagating | Non flame propagating | 1 |
| Suspended load capacity | None declared | 0 |
| Additional properties | ||
| Raw material | Halogen free, heavy metals free (RoHS) and specially stabilized thermoplastic PC | |
| Ageing resistance | UV stabilized | |
| Antimicrobial technology | Resist the growth of bacteria by up to 99% within 24 hours | |
| Halogen free | No toxic or corrosive gases in case of fire | |
| Rodent repellent | Not attractive to rodents | |

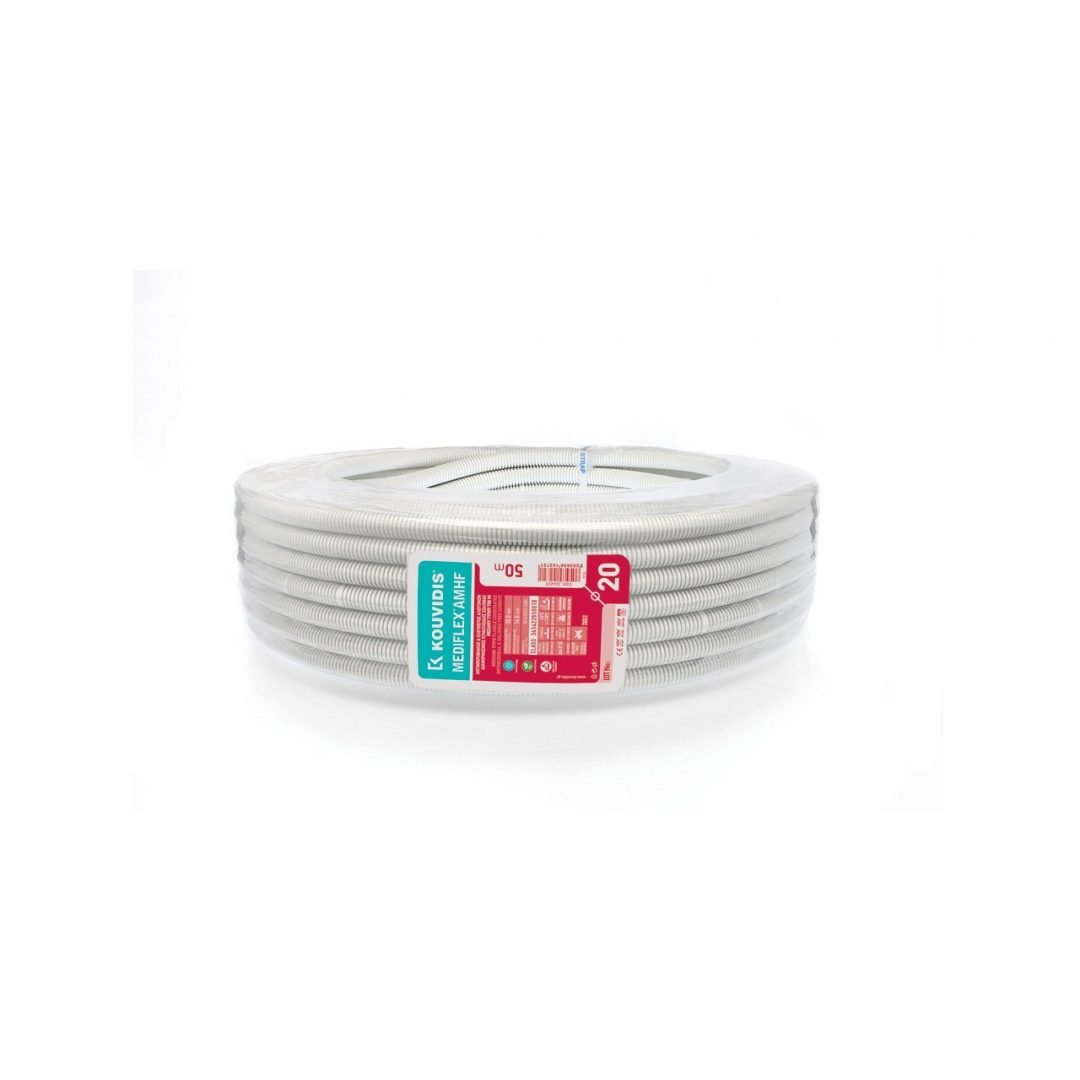

| Type | Part number |  |
 |
 |
 |
 |
| Ø16 | 2044016 | 16 | 11.1 | 50 | 2,40 | 3600 |
| Ø20 | 2044020 | 20 | 14.0 | 50 | 3,10 | 3200 |
| Ø25 | 2044025 | 25 | 18.6 | 25 | 1,90 | 1800 |
| Ø32 | 2044032 | 32 | 24.1 | 25 | 2,90 | 1400 |
| Ø40 | 2044040 | 40 | 31.2 | 20 | 3,10 | 880 |
| Ø50 | 2044050 | 50 | 39.3 | 20 | 4,00 | 400 |
| Ø63 | 2044063 | 63 | 51.3 | 20 | 5,40 | 360 |
LEGEND
- Recommended
- Not recommended
- Ideal according to the manufacturer
| SCOPES | |
| Exposed | |
| Concealed (dry wall) | |
| Concealed (underplaster) | |
| Concrete | |
| Underfloor in screed | |
| Outdoor | |
| Buried underground | |
| Application on wood | |
| Concealed (floor, ceilings) | |
