MEDIFLEX AM Pliable conduit with antimicrobial technology
- CLASS:33412
MEDIFLEX AM conduit with antimicrobial technology was developed in 2011 and presented in Light + Building fair 2012 in Frankfurt, Germany. MEDISOL AM conduit is a part of MEDISOL AM – MEDIFLEX AM conduit system for cable management and protection. It is a pan European patent that was developed by KOUVIDIS as it has the property to reduce up to 99% of the most dangerous pathogenic microbes (MRSA, E-coli) within 24 hours. Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE.
LEARN MORE ABOUT THE INNOVATION
APPLICATION FIELD
Ideal for sanitary areas (hospitals, medical centers & laboratories) and public spaces (schools, nursery homes/rooms & sport centers) and areas requiring implementation of HACCP & ISO 22000 systems such as food industries/warehouses, restaurants, etc.
- APPLICATION STANDARD:EN 61386.22, ISO 22196
- INSTRUCTIONS FOR COMPLIANCE:2014/35/EE (LVD), 2011/65/EU(RoHS), 98/8/EU(BPD)
- COLOR:RAL 9003 White
Product Conformity to all requirements of relative European Directives.- Minimum compression strength
- Minimum impact strength
- Min-max permanent application temperature
- Ingress protection against solid objects and water (EN 60529)
- Product with extra UV stability
- Non flame propagating product
- Product Certificate for its antimicrobial effectiveness from the BIOCOTE British Institute (ISO 22196)
- Antimicrobial product that inhibits by up to 99.9% the growth of harmful bacteria.
- Product is not an attractive food to rodents
- PROPERTIES
- CHARACTERISTICS
- PACKAGING
- RECOMMENDED APPLICATIONS
- DOWNLOADS
- PROJECTS
1Resist the growth of bacteria by up to 99% within 24 hours
2Antimicrobial efficacy is tested according to the International Standard ISO 22196 and is controlled by the British laboratory BIOCOTE

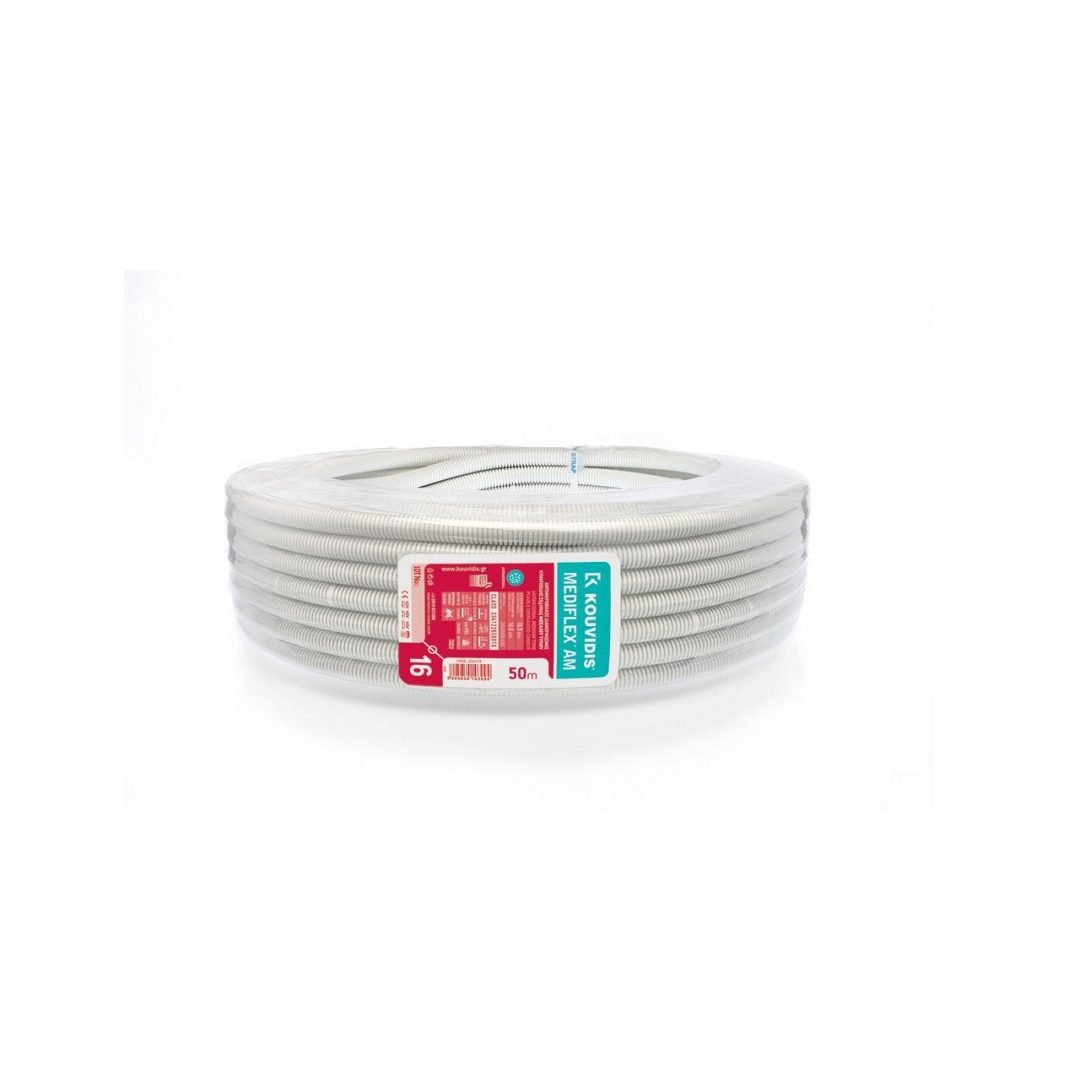

3Marked using embossed printing and packed with 100% recyclable polyethylene film including safety straps and an informative red color label
4High impact (2J) resistance (medium type) in low temperature of -25oC
5High ingress protection (min IP65), when connected with MEDISOL AM coupler
6Not attractive to rodents
| Properties | Class | |
| Resistance to compression | 750Nt/5cm | 3 |
| Resistance to impact | 2J (at -25oC) | 3 |
| Lower temperature range | -25oC | 4 |
| Upper temperature range | +60oC | 1 |
| Resistance to bending | Pliable | 2 |
| Electrical characteristics | With electrical insulated characteristics | 2 |
| Protection against ingress of solid objects | min IP65 | 6 |
| Protection against ingress of water | min IP65 | 5 |
| Resistance against corrosion | Not applicable | 0 |
| Tensile strength | None declared | 0 |
| Resistance to flame propagating | Non flame propagating | 1 |
| Suspended load capacity | None declared | 0 |
| Additional properties | ||
| Raw material | Heavy metals free (RoHS), specially stabilized thermoplastic U-PVC | |
| Ageing resistance | UV stabilized | |
| Antimicrobial technology | Resist the growth of bacteria by up to 99% within 24 hours | |
| Rodent repellent | Not attractive to rodents | |
| Type | Part number |  |
 |
 |
 |
 |
| Ø16 | 2044116 | 16 | 10.7 | 50 | 2,87 | 3600 |
| Ø20 | 2044120 | 20 | 14.1 | 50 | 3,95 | 3200 |
| Ø25 | 2044125 | 25 | 18.3 | 25 | 2,74 | 1800 |
| Ø32 | 2044132 | 32 | 24.0 | 25 | 3,87 | 1400 |
| Ø40 | 2044140 | 40 | 31.0 | 20 | 4,05 | 880 |
| Ø50 | 2044150 | 50 | 39.0 | 20 | 5,27 | 400 |
| Ø63 | 2044163 | 63 | 52.0 | 20 | 7,12 | 360 |
LEGEND
- Recommended
- Not recommended
- Ideal according to the manufacturer
| SCOPES | |
| Exposed | |
| Concealed (dry wall) | |
| Concealed (underplaster) | |
| Concrete | |
| Underfloor in screed | |
| Outdoor | |
| Buried underground | |
| Application on wood | |
| Concealed (floor, ceilings) | |
